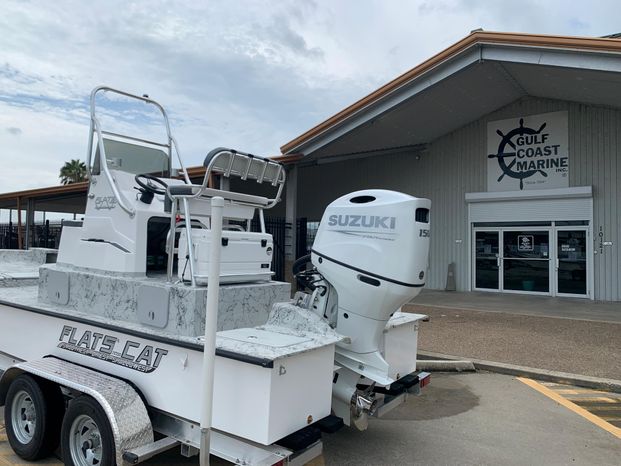

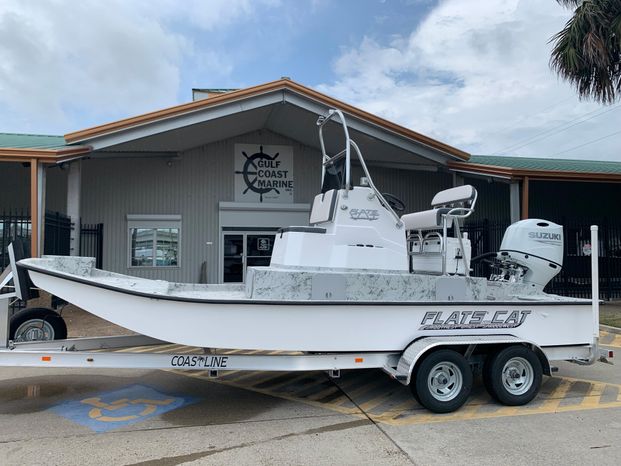

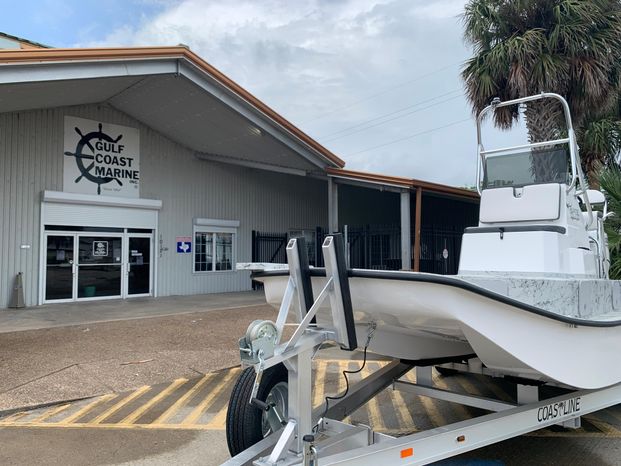

FLATS CAT 21', 2023
TROLLING MOTOR MOUNT
BURN BAR WITH CUP HOLDER

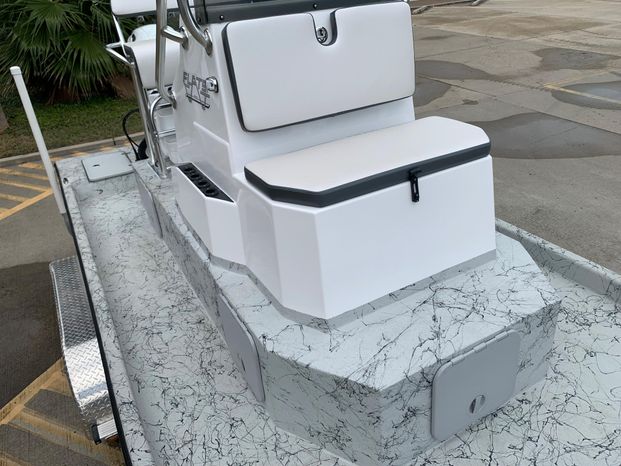

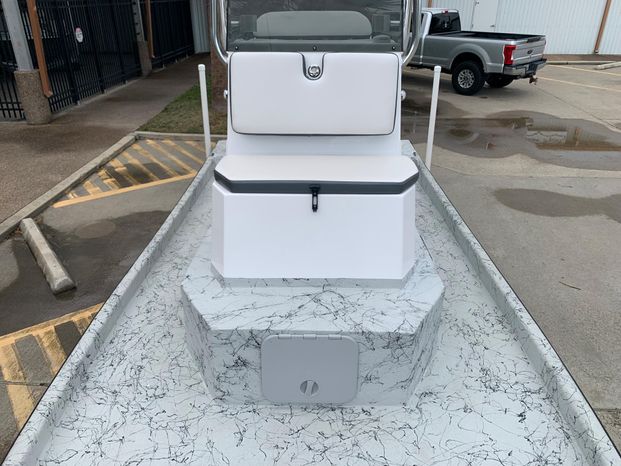

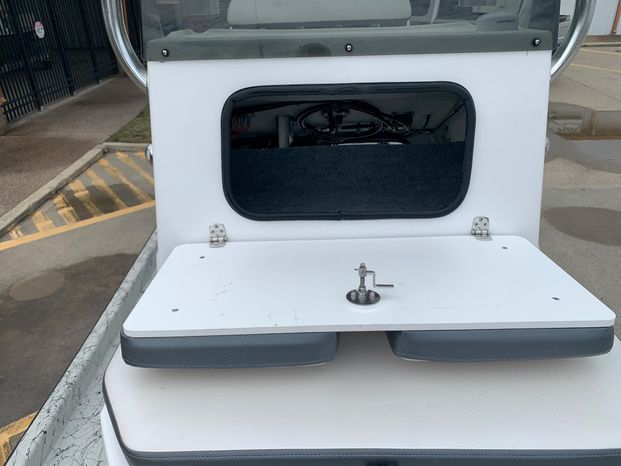

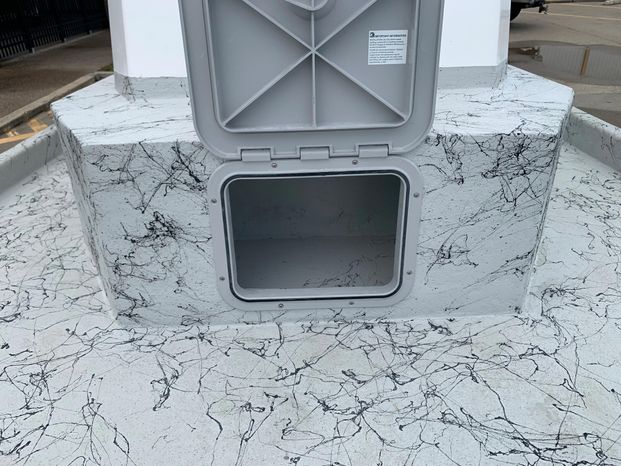

RAISED CONSOLE W/ HATCHES

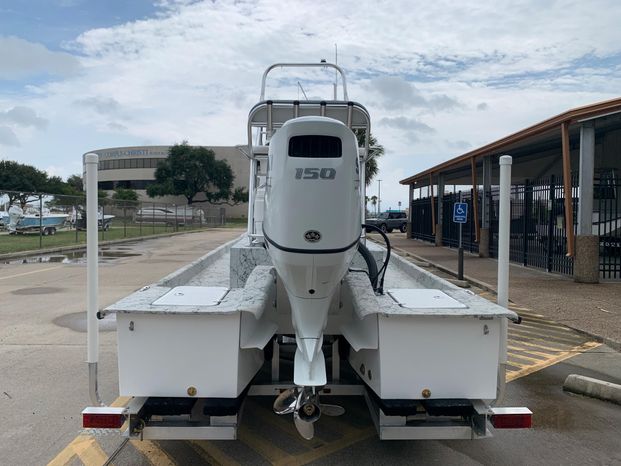

JACK PLATE

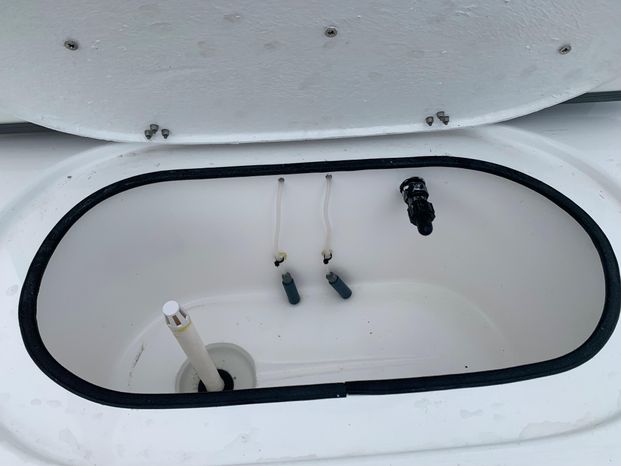

LIVEWELL WITH PRO AIR
Specifications
Beam: 7' 6"
Bottom: 7'
Weight: 1650 lbs
Gunnel Height: 20"
Transom Height: 27"
Planing Distance: 10'
Take off depth: 6"
Minimum running depth: 3 ½"
Bow rise on take off: 5"
Boat Draft at Rest: 4 ½"
Boat Draft at Speeds: ½"
Maximum HP: 150
Recommended HP: 130-150
Fuel Capacity: 40 Gallon fuel tank
Standard Features
Unsinkable design and construction
All hand laminated fiberglass hull
Patented Catamaran Design
Self Bailing
Level flotation

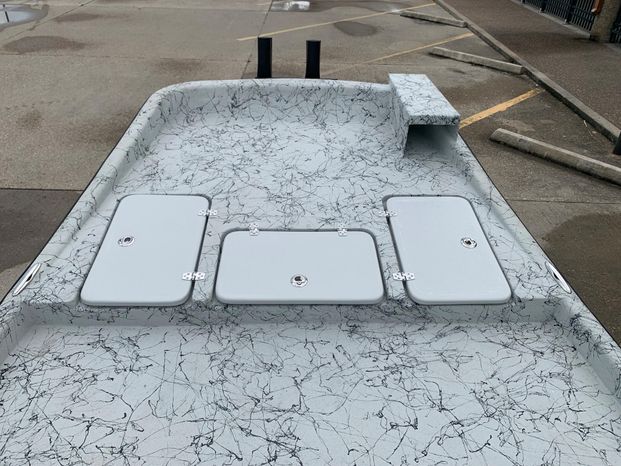

Large front casting platform with waterproof hatches
Dual rear casting platform with waterproof hatches
Non-skid deck
Gel Coat Interior
3 box storage in front casting platform
Storage in rear casting platforms
Polystyrene foam floatation
Bow Eye
Stern Eyes
Heavy Duty Vinyl rub rails
Wiring conduit from console to bow
One way drain scuppers
Control Tube covers
Smooth dry catamaran ride
Trailer Standard Features
Custom-built Aluminum Coastline trailer to fit boats contours
Drive on and off design
14" Tires with galvanized or aluminum wheels and axles
Enclosed wheel wells
Waterproof lights
Center mounted guide boards for foolproof loading
Swing up screw type dolly jack
E-Z lube buddy bearing system
Optional tandem or single axle available
Shallow Water Capabilities
The ram air affect which affords the Flats Cat to run smoothly across the top of the waves also serves another function when entering shallow water. As air passes under the bow and approaches the inside walls of the Cat Hulls, the water under the boat is compressed slightly and in turn rebounds up into the water channel of the twin hulls. It is here that the water comes in contact with the sub-hull. The sub-hull is a slightly downward curve about one third of the way back from the bow. The purpose of the sub hull is to purge most of the air out of the water that is flowing into the Cat Hulls. The water is then wedged or trapped in between the Cat Hulls by the patented reverse angle inside hull wall. When the water passes under the transom, a jet effect is formed compacting the water even more and aiding in forward motion. When the water exits the transom it explodes up into the lower unit and propeller of the outboard which allows for good handling characteristics, and more than adequate water pressure for engine cooling. At speeds exceeding 20 MPH the Flats Cat Hull has 1/2" draft, meaning the boat is on top of the water, not pushing through it. When entering water that is 7" or less in depth, the water is compacted between the hull and the bottom creating a lifting effect which raises the boat to about 1/2" plus draft. This means that the keel-less Flats Cat will not hit sub surface strata while there is any water below the boat at speed. However, when equipped with a tilt and trim engine and a standard 5" Jack Plate, skeg drag will occur in about 3 1/2" of water, signaling the boat operator to seek deeper water. This is a built-in safety factor for shallow water running, which has been well received and appreciated by our boat owners.
When a Flats Cat passes over the water, air is injected or rammed into the large bow entrance raising the boat up out of the water allowing the boat to ride on top of the waves and gently walk from side to side on the Cat Hulls, thus eliminating the pounding affect created by most mono Hulls. The seemingly flat hulls push water straight out away from the boat, far enough that spray cannot be drafted up the almost vertical sides, and into the boat. Since natural waves are uneven in their physical make up and do not roll evenly like a wake from a boat, the Cat Hulls encounter different waves at different intervals creating a side to side or walking motion. To put it simply, a mono hull in rough water is like jumping up and down on one foot and a catamaran is like walking smoothly on both feet.
Smooth Dry Ride
When a Flats Cat passes over the water, air is injected or rammed into the large bow entrance raising the boat up out of the water allowing the boat to ride on top of the waves and gently walk from side to side on the Cat Hulls, thus eliminating the pounding affect created by most mono Hulls. The seemingly flat hulls push water straight out away from the boat, far enough that spray cannot be drafted up the almost vertical sides, and into the boat. Since natural waves are uneven in their physical make up and do not roll evenly like a wake from a boat, the Cat Hulls encounter different waves at different intervals creating a side to side or walking motion. To put it simply, a mono hull in rough water is like jumping up and down on one foot and a catamaran is like walking smoothly on both feet.
